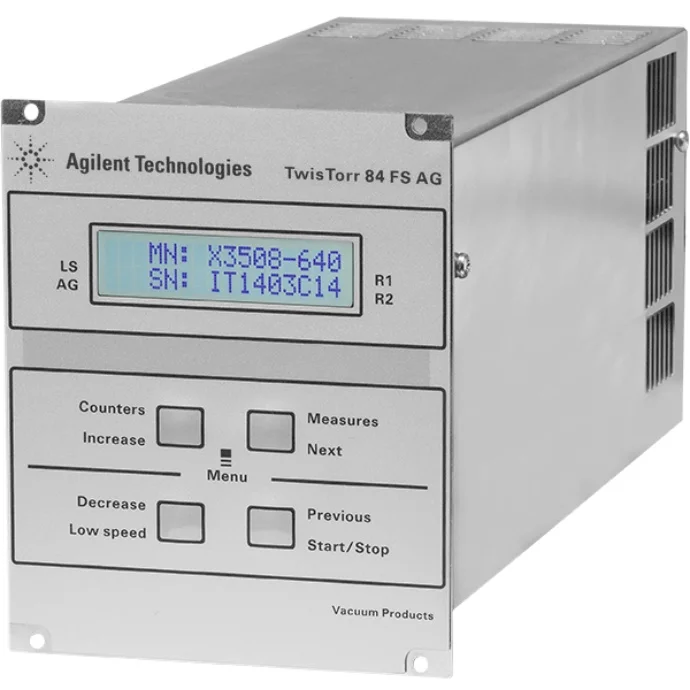

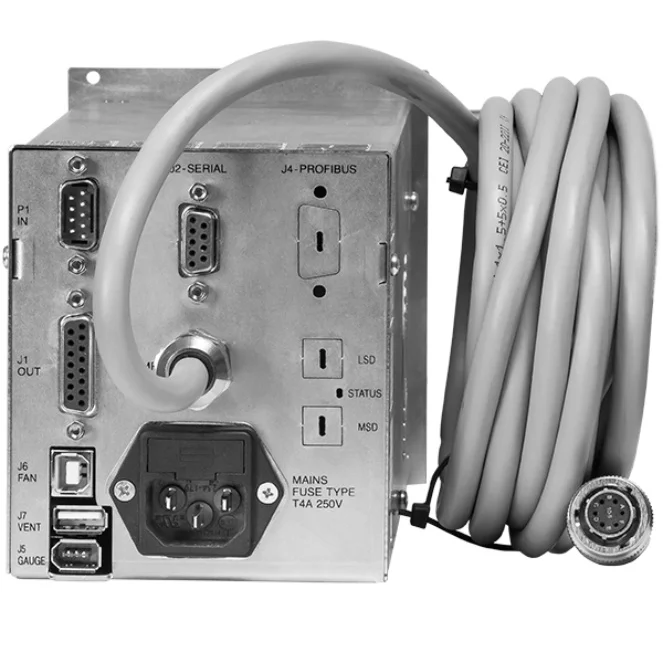

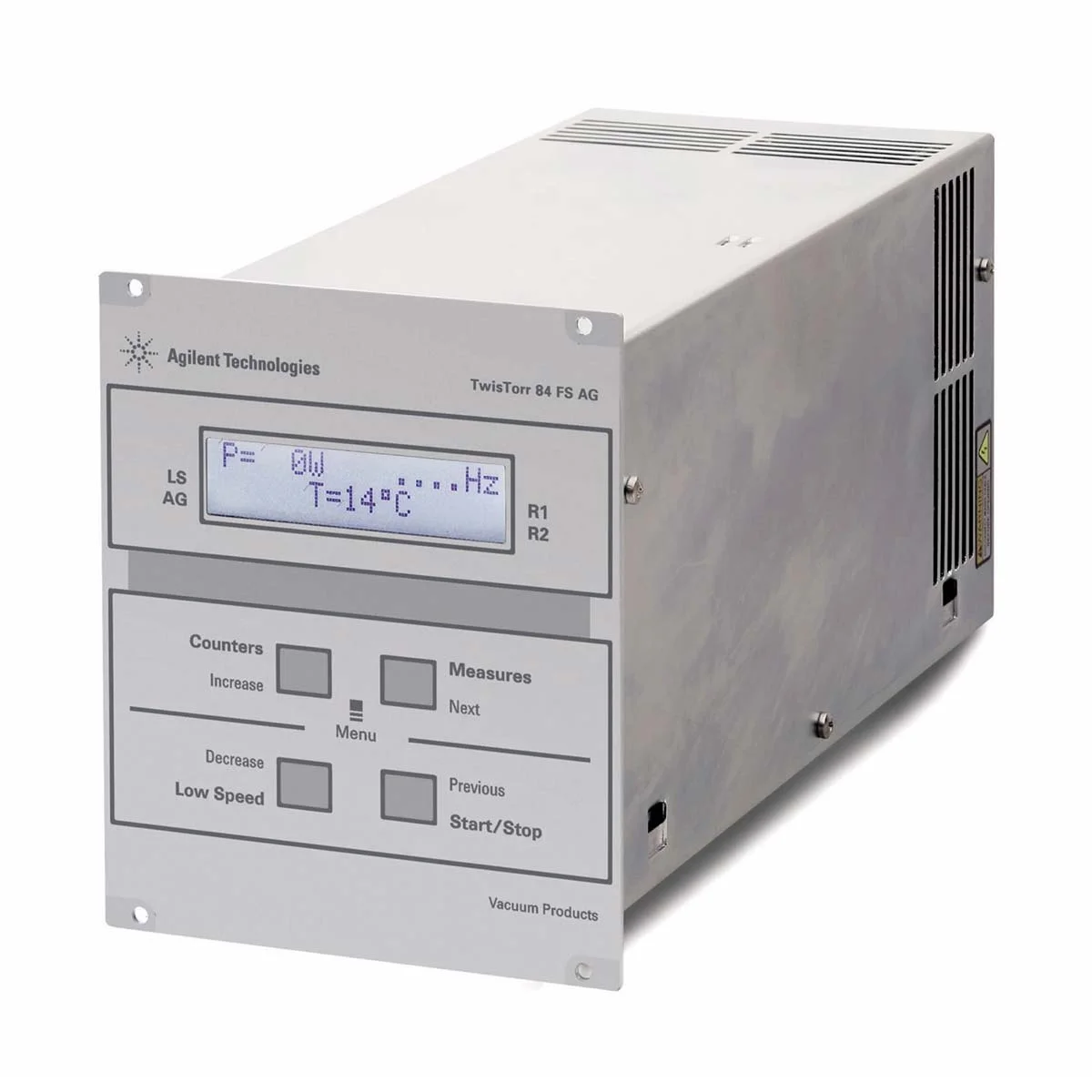

Agilent Varian TwisTorr 84 FS AG Rack Turbo Vacuum Pump Controller X3508-64001
Product Description
The TwisTorr 84 FS-AG rack controller is a microprocessor controlled frequency converter with, enhanced features that allow greater control and communication capabilities. This compact, ¼ rack unit is designed for full worldwide compatibility, vent valve control, active gauge pressure reading, and pump operation parameters control.
Feature
Universal voltage – the controller is able to auto set according to the input voltage, providing flexibility for easy installation worldwide
RS-232/485 communication protocols and Profibus (options)
Allows the pump to interact the system controls
Enables the pump to be operated via PC with T-plus software
Helps development of own customer software
Stop Speed Reading (SSR)
Continues pump speed reading after the stop command
Allows observation of the pump in slow down ramp and shut down time
N.O. and N.C. Vent Valve Drive
Valve delay and opening time adjustable
Vent valve driven by controller automatically or by serial line
Opening time control through SSR function
Specification
| Specifications | Rack | Onboard X3509-64001 | Onboard X3509-64000 |
|---|---|---|---|
| Input: Voltage Frequency Power | 100, 240 Vac 50 to 60 Hz 450 VA | 24 Vdc ±10 % 50 to 60 Hz 80 W | 100 to 240 Vac ±10 % 50 to 60 Hz ±5 % 130 VA |
| Fuse | 2 x T4 A (slow blow) 250 V | 2 x T2 A (slow blow) 250 V | |
| Output: Voltage Frequency Power | 75 Vac 1,350 Hz 100 W (Ramp), 70 W (Normal and Autotuning) | 60 Vac 1,350 Hz 55 W | 60 Vac 1,350 Hz 70 W |
| Storage temperature | -20°C to + 70°C 0 - 95% | ||
| Operating temperature | +5°C to + 45°C 0 - 90% | ||
| Compliance with standards | Safety: EN 61010 - 1 (2001) Radio Interference: EN 55011 (Class-A) Harmonics: EN 61000-3-2 Flicker: EN 61000-3-3, EN 61000-6-2 (2005) ESD: EN 61000-4-2 Radiated RF Immunity: EN 61000-4-3 Burst: EN 61000-4-4 Surge: EN 61000-4-5 Conducted RF Immunity: EN 61000-4-6 Radiated Magnetic Field: EN 61000-4-8 DIPS: EN 61000-4-11 | ||
| Weight | 1.7 Kg (3.2 lbs) | 500 g (230V) 300 g (24V) | |
| Pollution degree | 2 | ||
| Installation Category | II | ||
| Acoustic noise (ISO7779) | LpA < 70 dB(A), normal operation, operator position | - |
